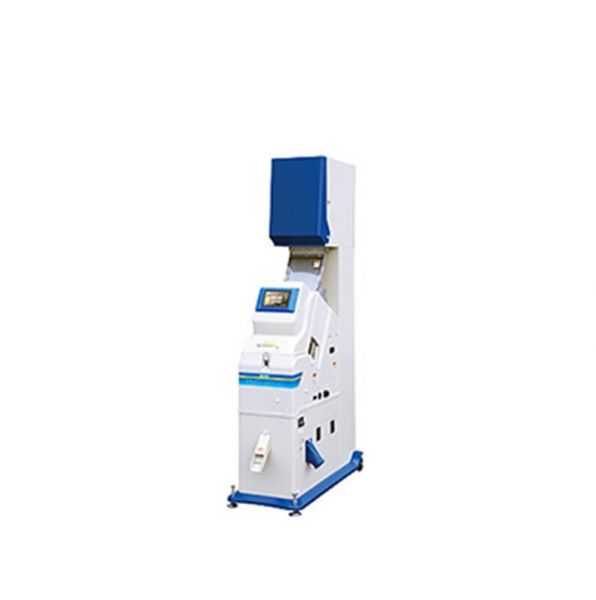

FMS2000 COLOR SEPARATOR
0₫♺ 12 month warranty
⚐ Japan
FMS multi-function color sorting machine, very suitable for Robusta, Arabica coffee, roasted coffee is a multi-color machine line manufactured entirely in Satake Japan, with typical Japanese style and
| Model | FMS2000F |
| Dimensions (LxWxH): | 476 x 1260 x 1773 |
| Weight | 160kg |
| Origin | Japan |
| Trademark | SATAKE |
Outstanding features:

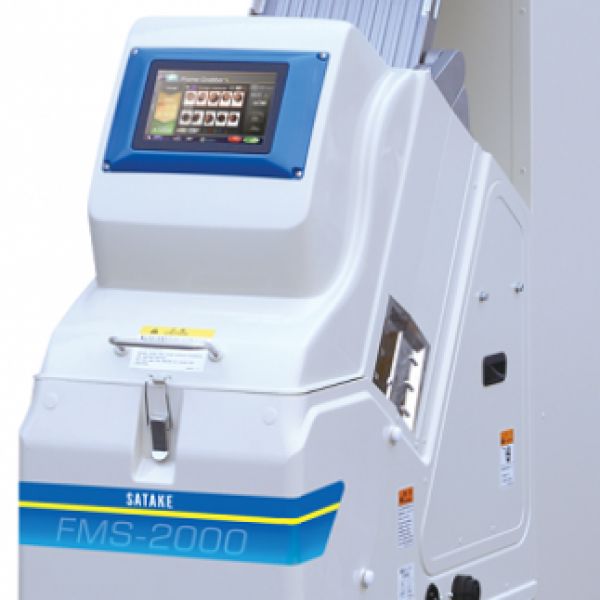

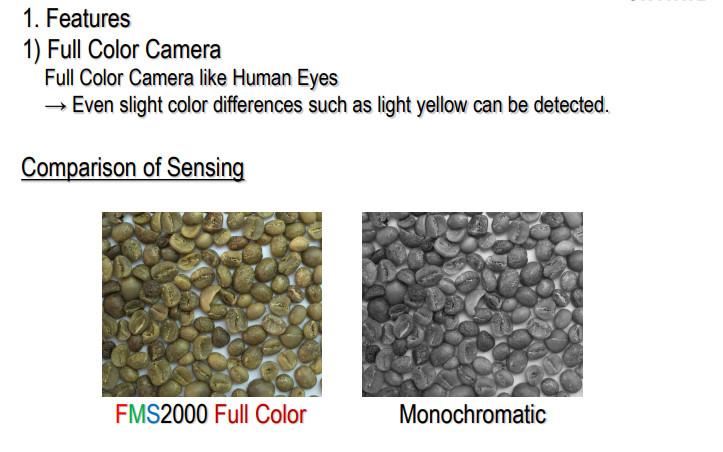

Multi-color camera, manufactured by Satake and making the most of the features.
Unique cold cathode fluorescent lamp CCFL of FMS, uniform brightness, stable and long life like LED.
Satake standard air gun.

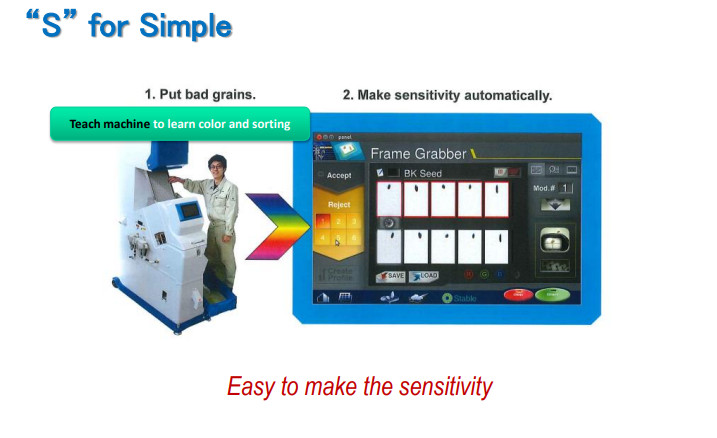

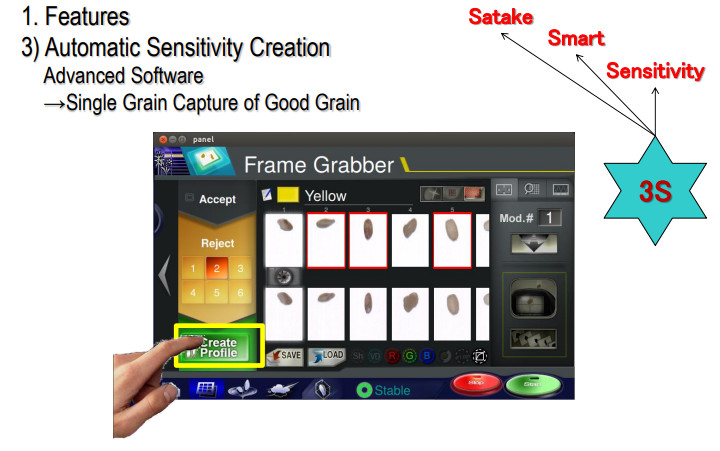

Satake's friendly, intelligent interface, integrated with 3S system (Satake Smart Sensitivity) to create automatic sensitivity.
Multiple configurations, shooting modes to suit many different products and requirements.
Open design for easy cleaning and maintenance.
Has the function of classifying products of different sizes and shapes.
There is an option to add an additional dust extractor fan inside.
SPECIFICATIONS TABLE OF SG MULTI-COLOR SEPARATOR:
| No | INFORMATION | MODEL | DETAILS |
| 1 | Brand | Satake | Japan |
| 2 | Dimensions (mm) | Dimension | 476 x 1260 x 1773 |
| 3 | Chute | Chute | Flat/groove, 240 mm wide |
| 4 | Lights | Lights | 6 x CCFL (cold cathode fluorescent) |
| 5 | Camera | Multi-color CCD x 2 pieces | |
| 6 | Air gun | Ejector valve | 48 pieces (+1 for glass blowing) |
| 7 | Voltage (Vac): | Rated voltage | 220 |
| 8 | Power (kW) | Required power | 0.6 |
| 9 | Air flow (m3 /min) | Required air volume for compressor | 0.33 |
| 10 | Air supply pipe | Air joint part | 6 mm (outer diameter), 12 mm (inner diameter) |
| 11 | Compressor | Compressor | 2.2 kW |
| 12 | Dust extraction flow (m3 /min) | Required air volume for dust collector | 5 |
| 13 | Coffee shooting capacity (ton/hour) | Capacity for sorting coffee | 0.4 - 0.8 (roasted coffee) 0.8 - 1.6 (green coffee) |
| 14 | Space around the machine | Space around the machine | 1m |
| 15 | Temperature | Temperature | 0-40 degrees C |
| 16 | Humidity | Humidity | <85% |
| 17 | Noise level (dB) | Noise level (dB) | 86 |
Applications of FMS2000 color sorter
FMS can be used for:
Color sorting of raw materials in factories with small and medium capacity of 0.5-2 tons/hour (raw materials, semi-finished products or finished products). Industrial standard machines can run continuously, on a chain.

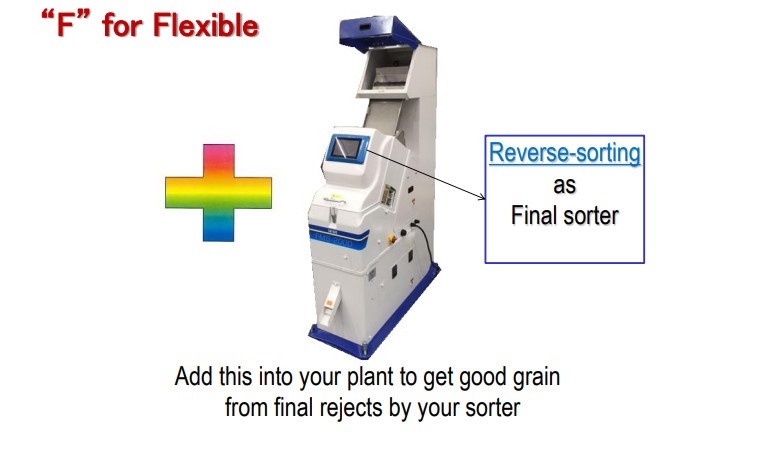

Reprocessing of waste (already sorted by another machine) to recover good beans.
Multi-purpose FMS, very suitable for:
Coffee (Robusta, Arabica, roasted coffee)Sorting for on-site processing, placed right at stores, distribution centers, processing and trading. Modern standard machines are placed in the most luxurious places.
Sampling classification (sample test), including for testing and design rooms
Re-classification due to other machines or other classification methods not meeting the requirements
More information:

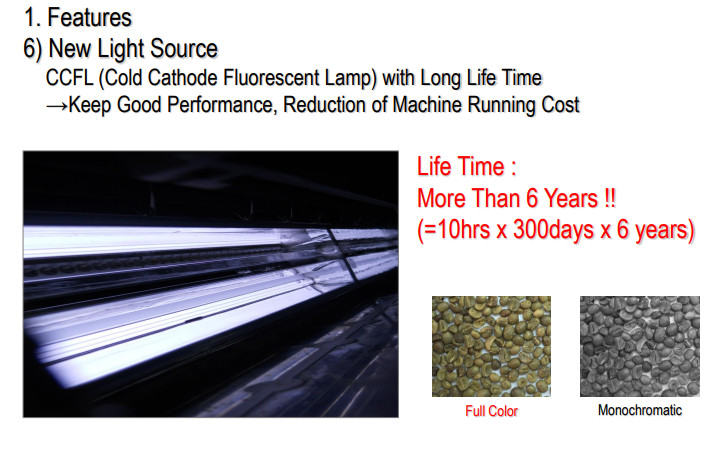

The machine uses cold cathode fluorescent lamp, life span 20,000 hours (about 5-6 years)

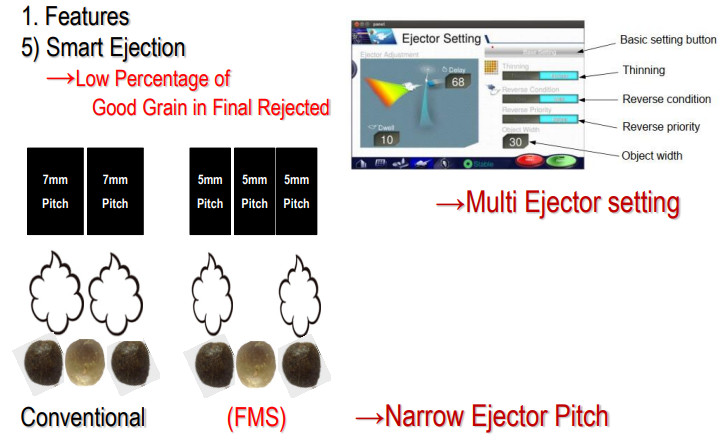

The machine has a 5mm impact air gun, operating 1 billion times (normally at least 5 years of use)

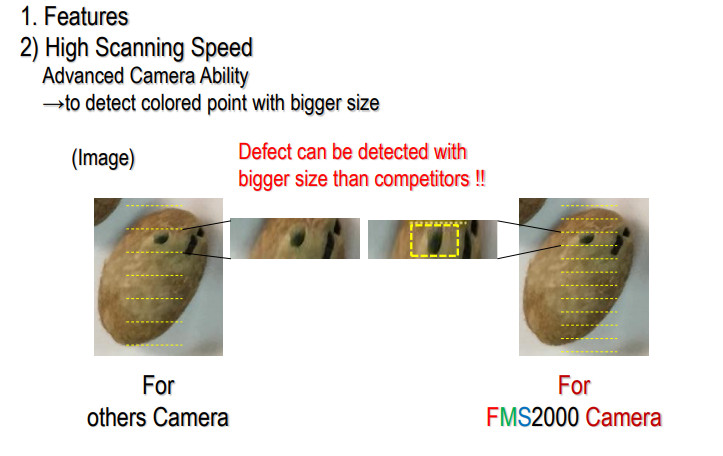

Multi-color camera, high scanning speed and resolution. The machine has an automatic sensitivity mode when taking new samples, simplifying use.
2. Machine support options (auxiliary systems):
2.1. Voltage stabilizer: Normally, the machine can use 220Vac voltage like other household appliances. If the factory voltage is unstable, it is recommended to use a voltage stabilizer (Lioa) with a capacity of 2kVA
2.2. Air compressor: HT Machine Engineering Joint Stock Company Pikasen α+ Color Shooting Machine Should use an air compressor with a capacity of 3 - 5 HP (2 - 3 kW) and should have an air tank, air dryer and air filter. Supply pressure 0.5 - 0.8MPa (minimum 5 kg/cm3)
2.3. Dust extraction system: Can be mounted externally, using a fan with a capacity of 0.5 HP
2.4. Others: Machine base, bucket, tank, ... are designed and connected appropriately according to the requirements of each customer.
